Resilient seated gate valves now also in DN1200
We are pleased to announce that we have added DN1200 to our wide range of resilient seated flanged gate valves with face-to-face dimension according to EN 558-14/DIN F4 15-09-2023

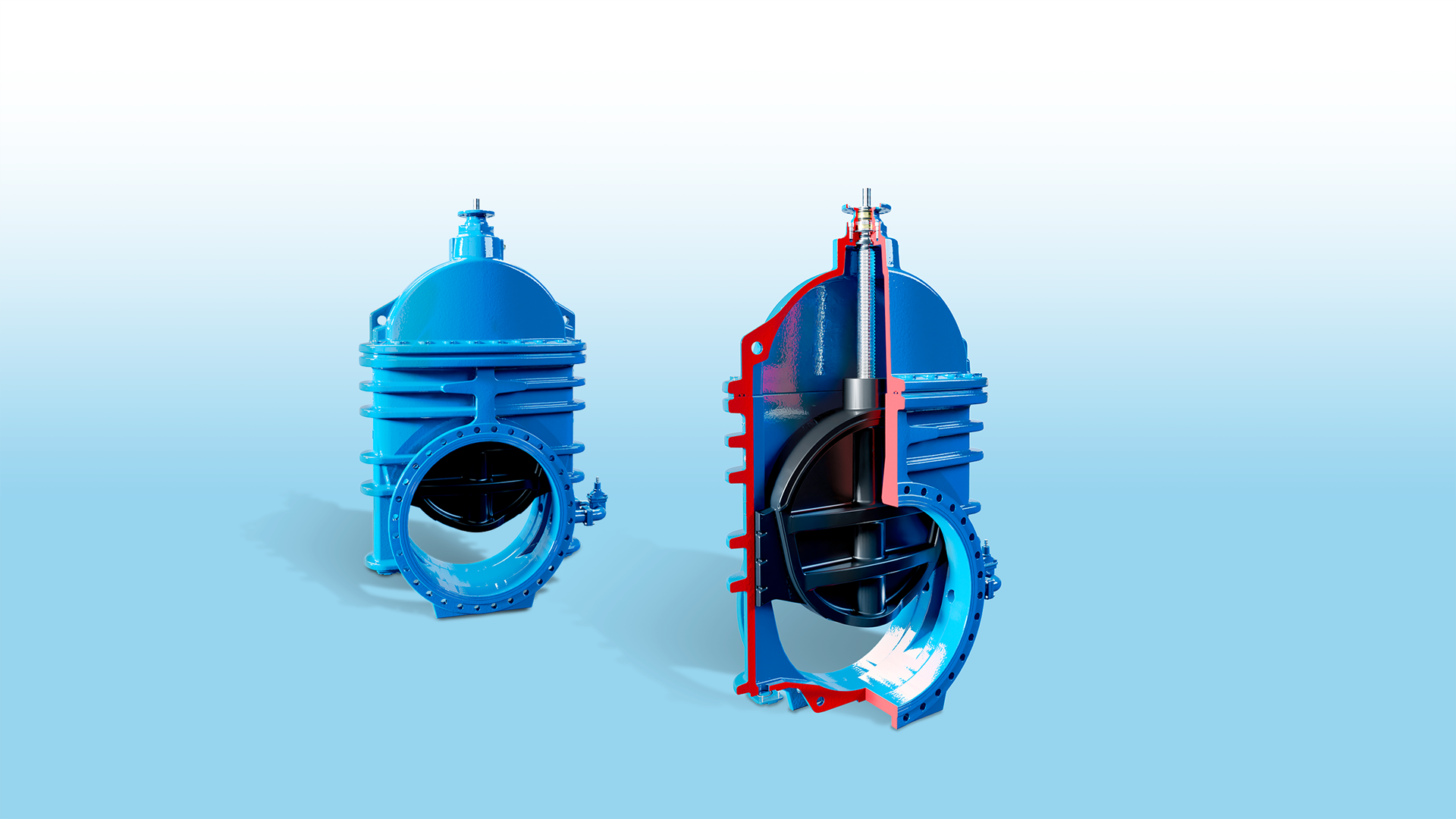

The new DN1200 gate valves are available in both PN10 and PN16, and with and without by-pass. The valves are designed with stem of stainless steel 1.4021 and F25 actuator flange for mounting of gearbox or electric actuator.
The new dimension features AVK’s renowned wedge design with fixed integral wedge nut, fully EPDM rubber vulcanized wedge and wedge shoes, and a removable gland flange for under-pressure replacement of bearings and seals. Furthermore, it has integrated lifting eyes for easy handling, a 3/4” connection plug for venting or installation of air valve, and detachable covers at the bottom for flushing of the wedge rail.
See our short animation below.
Please refer to our datasheets for more details:
06/30-029 Gate valve, flanged, DN700-1200
06/30-030 Gate valve, flanged, DN700-1200, with by-pass
