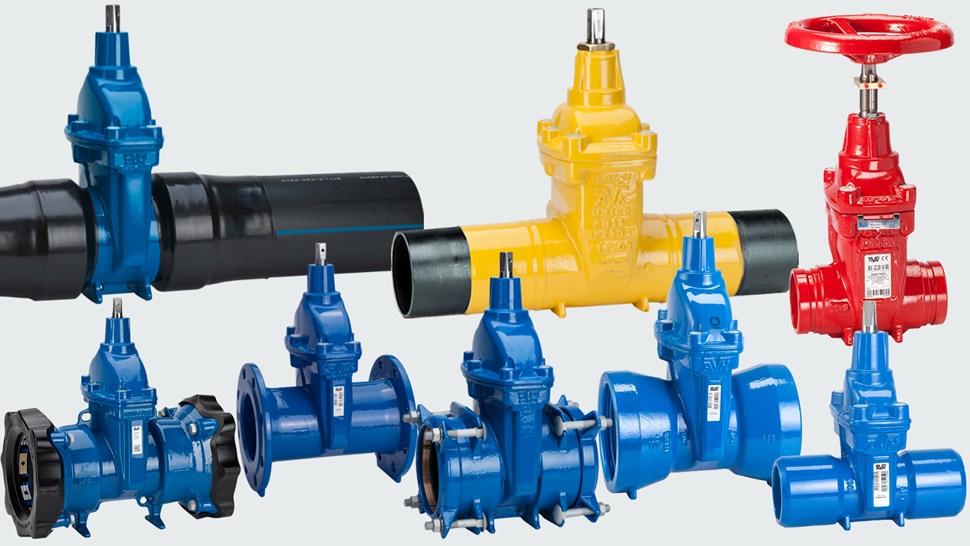

Various connection types of gate valves
AVK offers gate valve with wide range of end connection from welding ends for PE/steel pipe, universal and dedicated tensile coupling ends, spigot and socket ends, grooved ends, and of course flanged ends in a number of face-to-face dimensions.
Gate valve with flanged ends
AVK offers flanged gate valves to practically all standards, flanged drilling according to EN 1092/ISO 7005, and with face-to-face dimensions according to EN 558 table 2 basic series 3, series 14 (short, DIN F4) and series 15 (long, DIN F5) as well as to GOST, SABS, AWWA, AS and BS. Furthermore, we offer gate valves with flange X PE end and flange X spigot end as well as combi-crosses with 3 and 4 outlets.
Gate valve with PE pipe ends for direct welding into PE pipes
A piece of standard PE pipe is pressed directly onto the grooved valve end. The grooves combined with a sleeve around the valve/pipe connection ensure that the PE pipe material is firmly secured and that the connection remains tight and tensile during the entire service life of the pipeline. The connection is sealed with a shrink hose to provide corrosion protection. The full and straight bore ensures minimum pressure loss and makes under pressure drilling possible. Furthermore, also with flanged x PE end for water supply. AVK's gate valves with PE pipe ends feature a DVGW approved class 1 connection which is stronger than the PE pipe itself.
Gate valve with tensile coupling ends
AVK also offers tensile couplings with built-in valves, making it easy to turn off the water in case of repair or replacement. The Supa Maxi™ gate valve with tensile universal coupling ends make it possible to install the valve in all types of pipes, and it will often be used to connect an old cast iron pipe with a new PE pipe. The valve is very easy to install due to a big insertion depth tolerance, deflection of ± 4° and permanent end protection caps. The Supa Plus™ gate valve is dedicated to PE and uPVC pipes. The compression type gasket allows for a deflection of ± 3.5° and makes it easy to insert the pipe end, even in the large dimensions.
Gate valves with spigot ends for repair in old pipelines
After removal of a valve in an old pipeline, typically by cutting the pipes on both sides of the valve, the ends of the pipes may be offset and valves with standard face-to-face dimensions might not fit in the gap. A spigot end valve + a flange adaptor or a coupling with deflection ability is a flexible solution, and we offer them with short or long spigots for cast iron pipes as well as short spigots for AC pipes.
Gate valves with socket ends as alternatives to flanged ends
Socket ends are, just like the gate valves with coupling ends, a cost-effective alternative to flanged connections, when taking the cost of valves, flanges, bolts and gaskets as well as the mounting time into consideration. We offer gate valves with Euro sockets for uPVC pipes, Tyton sockets for cast iron pipes, and gate valves with the flexible grooved end system for steel pipes typically used in fire protection and irrigation system.
